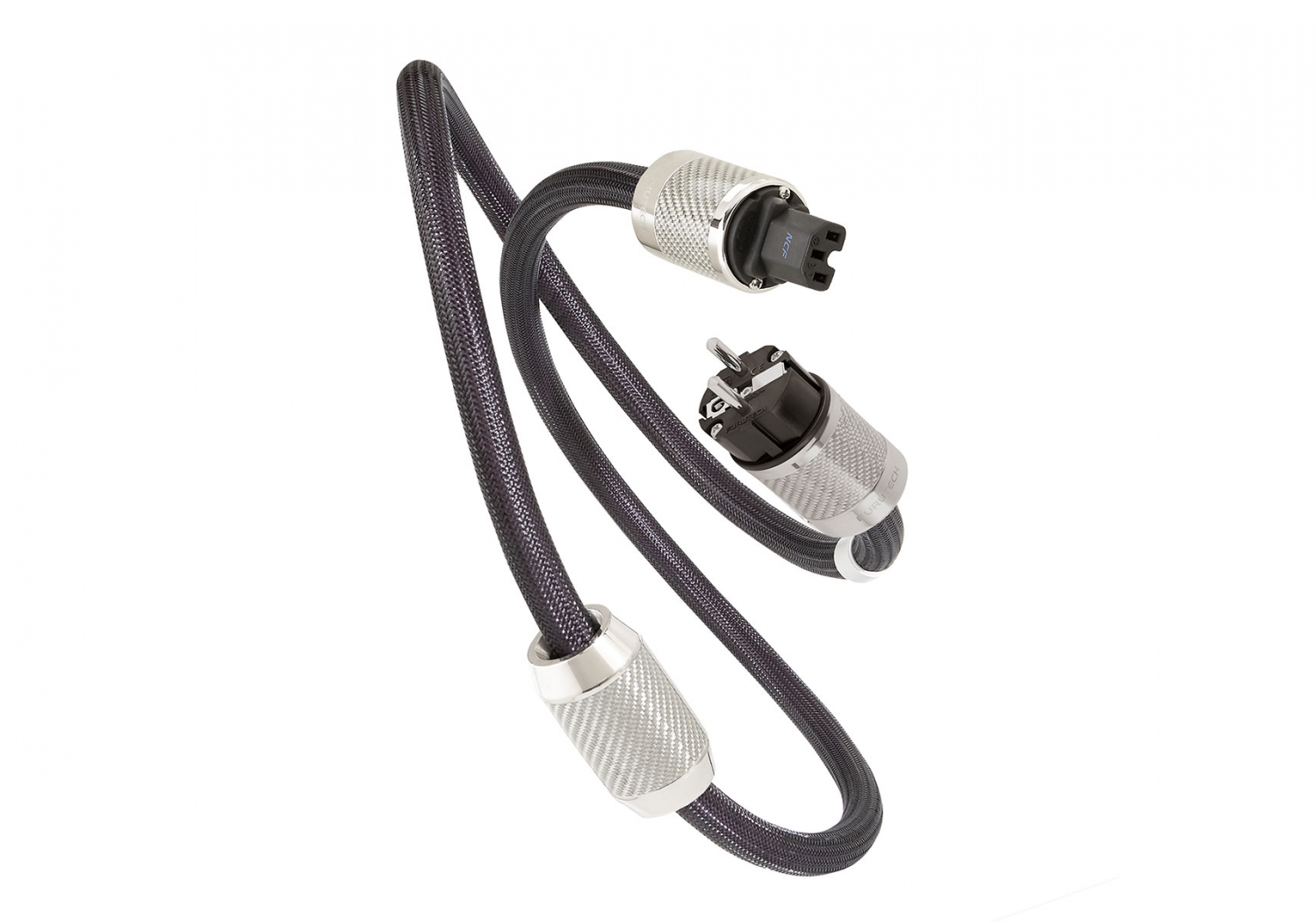

Furutech

• 68-strand α (Alpha) OCC conductor・0.127mmx7 x 3 cores, 2.8mm diameter
• Inner Sheath: RoHS compliant flexible PVC incorporating carbon powder
• Insulation: Special PE (Red/Natural/Yellow) 5.4mm diameter
• Sheath: RoHS compliant flexible PVC (Purple red) 16.5mm diameter
• Shield: 0.12mm diameter α (Alpha) Conductor wire braid
• Jacket: Nylon yarn braid approx. Overall diameter 17.5mm
• Max. Conductor Resistance 4.5 Ω／km
• Min. Insulation Resistance 2500 MΩ-km
• Dielectric Strength AC.3000 V／1 min.
