Furutech

Characteristics
Purity > 99.996%
Conductivity (EC) ≒101.5 IACS%
Tensile strength (TS) ≒250 MPa
Purity > 99.996%
Elasticity (E) ≒35% wire (1.3 mmΦ)

Voltage rating: 20A 125V / 16A 250V

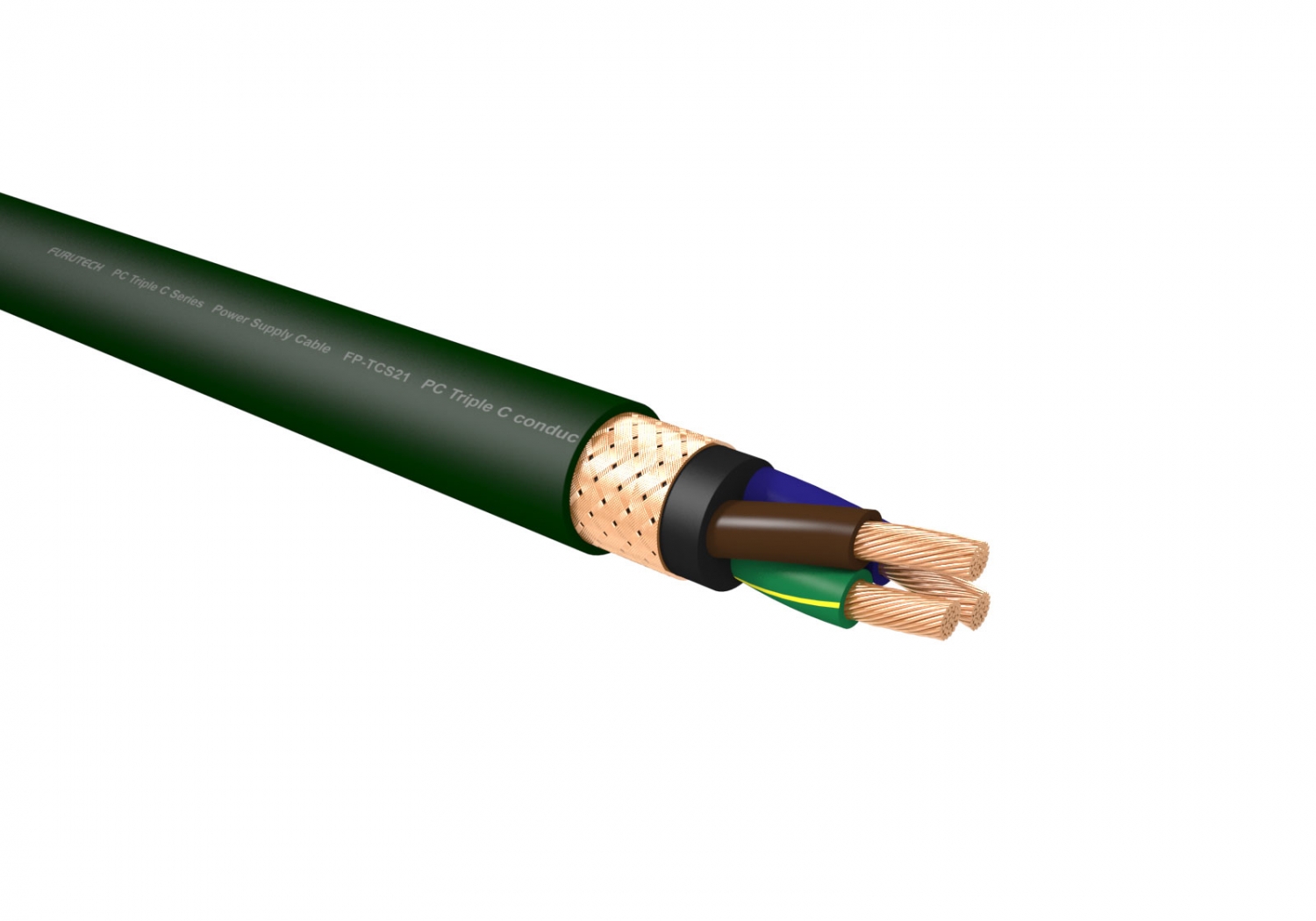

- Alpha PC-Triple C conductor: diameter 1.9mm (14 AWG)
- Insulation: Special grade Flexible PVC (Brown, Light Blue, Green/Yellow) diameter 3.5mm
- Inner Sheath: Special grade Flexible PVC (Black) diameter 9.2mm
- Shield: 0.12mm OFC Wire Braid
- Outer Sheath: Flexible PVC (Dark Green) diameter 12.8mm
